Entra Connect/Azure AD Connect V2

On-prem AD to Azure AD Synchronization using Azure AD Connect

                                Azure AD Connect is a tool which helps to synchronize the On-premises AD Directory with the Azure AD Directory.

I have the following domain in my both On-prem and Azure AD Directory.

On-prem AD Domain: topathirazure.online

Azure AD Domain: topathirazure.online

If the same domain is not found in the Azure AD, all users will get sync’d with the default directory’s primary domain.

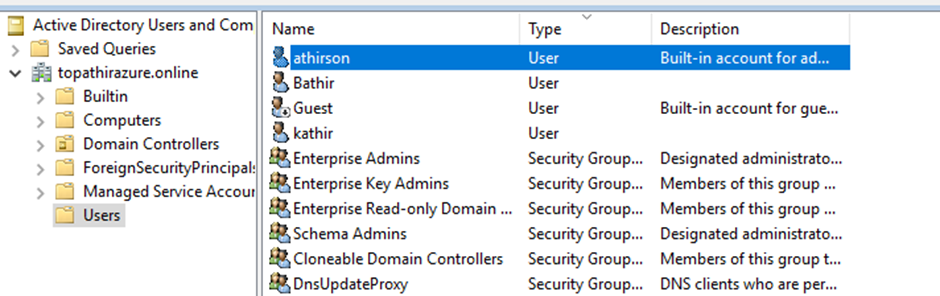

Below are the users who are part of On-prem AD. I want these users to use the cloud VMs/Applications hosted in Azure Cloud. For that I need to sync the users from On-prem to Azure AD. We cannot Sync Azure AD users to On-prem.



Below users are currently available in the Azure AD Tenant.



To sync the users, we need to install a tool called Entra Connect/Azure AD connect in the on-premises machine which is part of the domain.



Below is the installation window of Azure AD connect.



You will have the different sing-on options to choose. This needs to be selected based on customer preferences.

Password Hash Synchronization:

                Password hashes are stored in Azure AD to authenticate the user’s login. This doesn’t need On-prem AD to authenticate.

Pass-through Authentication:

                Passwords are validated by using a PTA Agent installed in the on-premises servers. This PTA agent validates the password with On-prem AD.

Federated Authentication:

                This will be used when you have a third-party authentication system.



Any Azure AD account with Global Admin or Hybrid Identity role can be used to authenticate the connection to Azure AD.



AD Domain admin credentials are needed to connect to on-prem AD.



A matching Azure AD domain is required to sync. Here ‘topathirazure.online’ domain is available on both On-prem and Azure AD. Otherwise the users will get synchronized to the default directory.



There is an option to choose the specific OU to sync.



This is to identify the users uniquely when there are users available across the multiple directories.



Specific group in the Forest can also be synchronized.

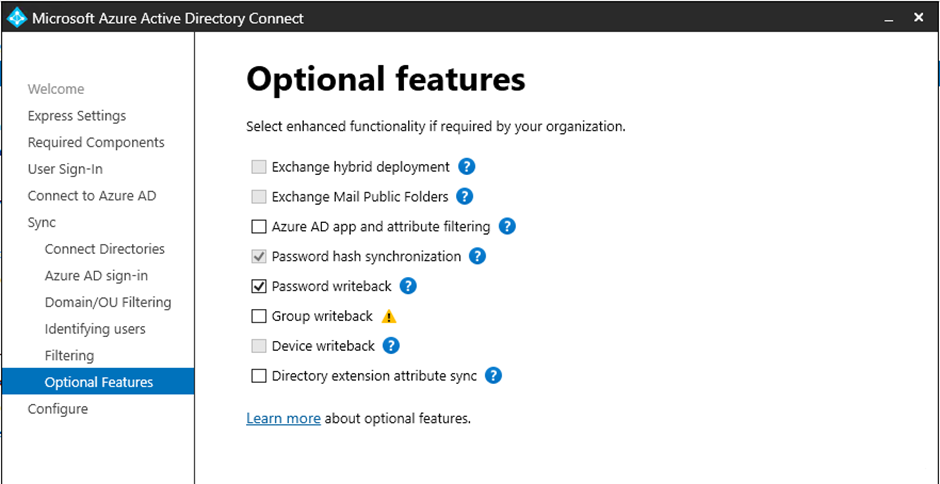

Password write back must be selected to synchronize the password to On-prem if it is changed on Azure AD.



Synchronization service manager is the tool from Azure AD connect to managed and monitor the synchronization.



Highlighted users are from On-premises.

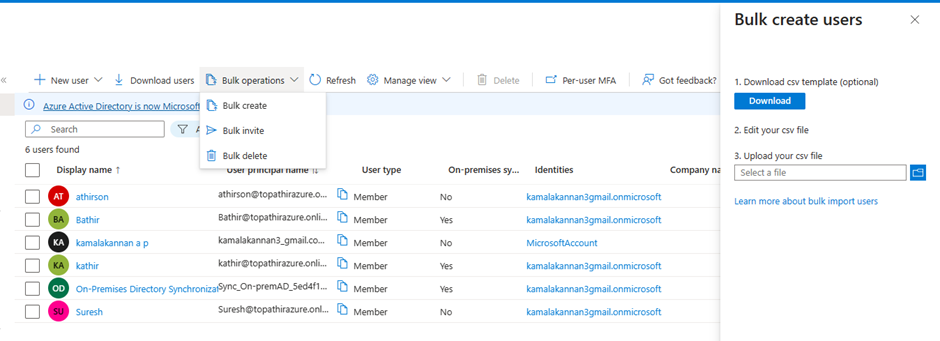

There is a manual option to create users using Bulk Invite or Bulk create.
